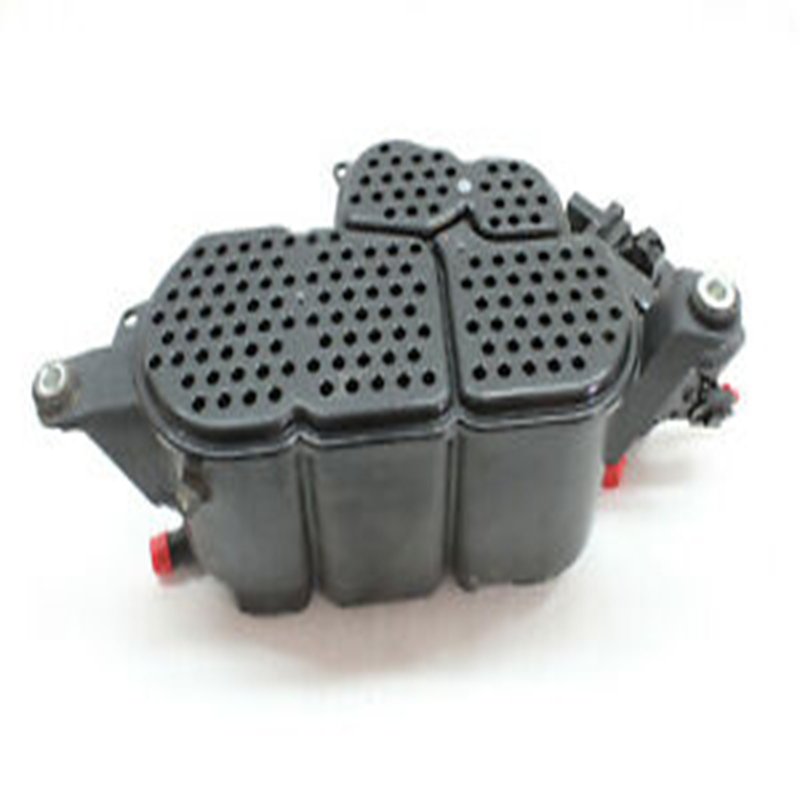

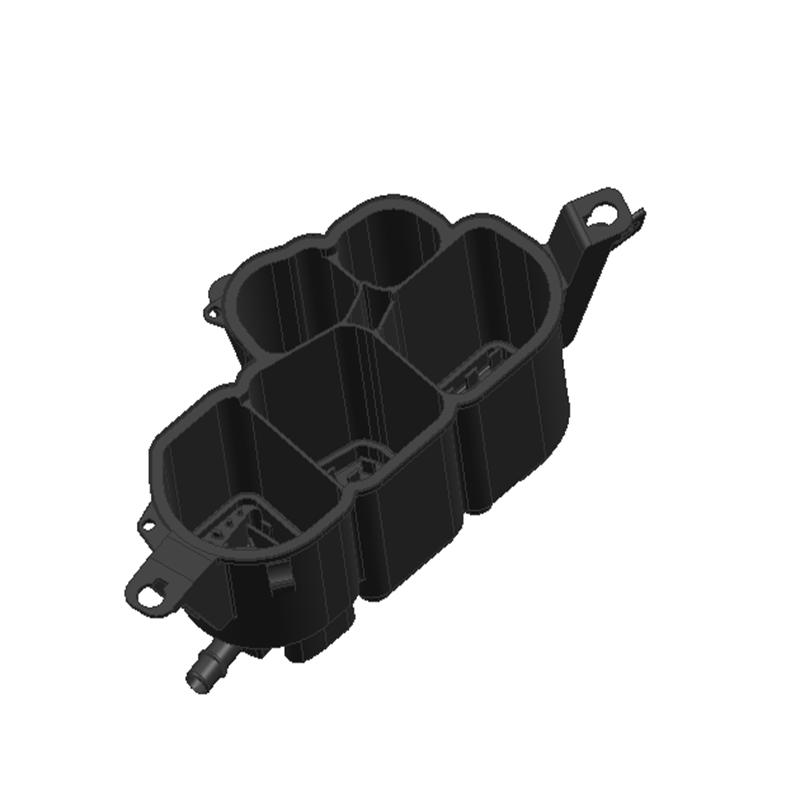

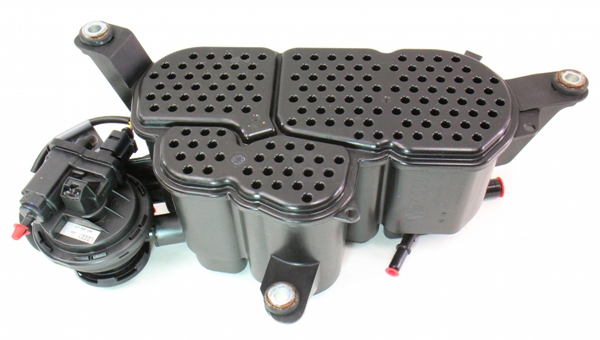

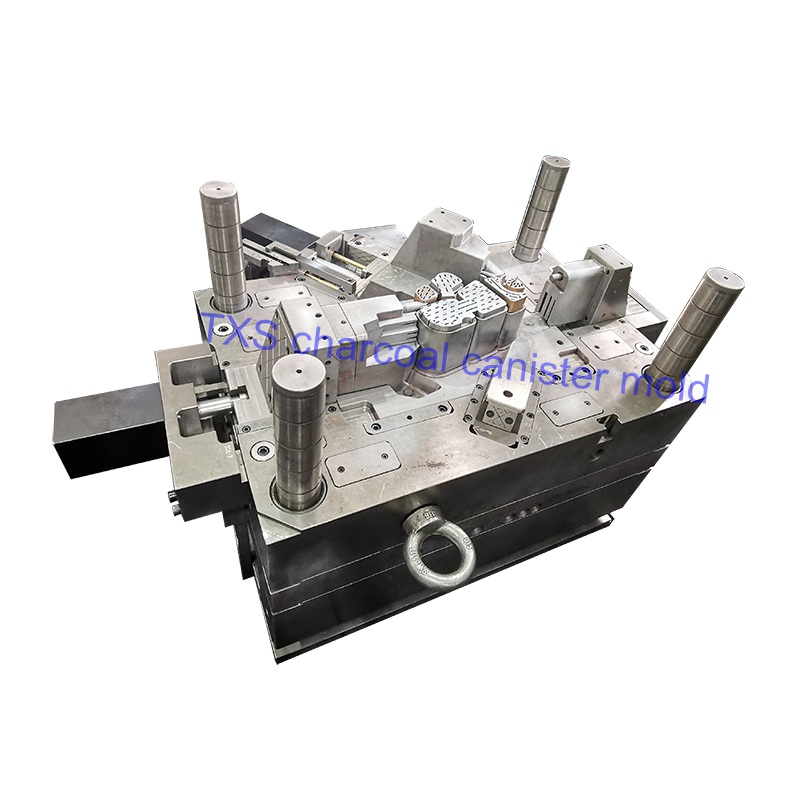

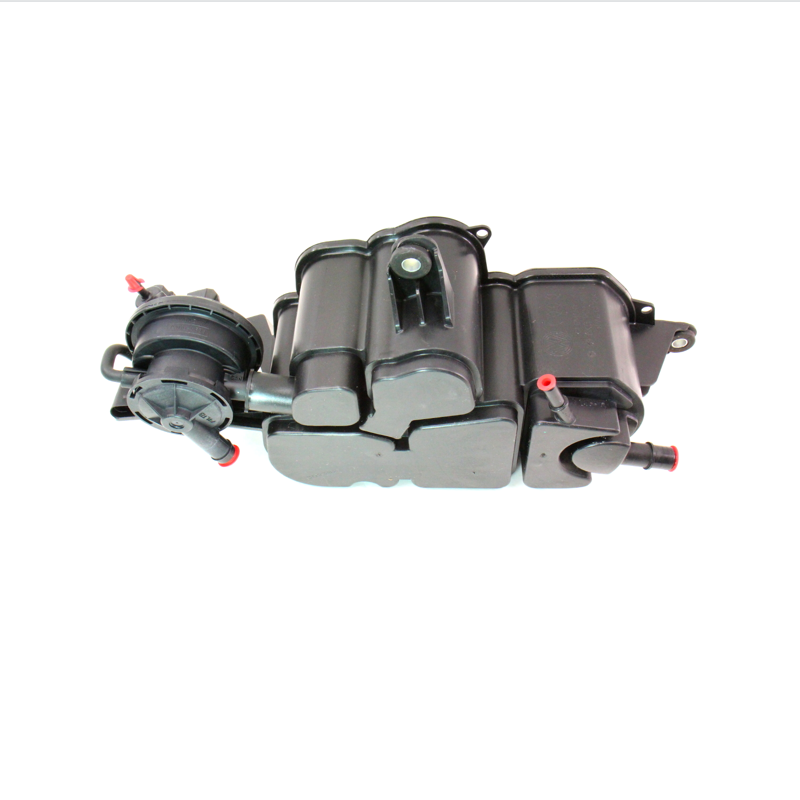

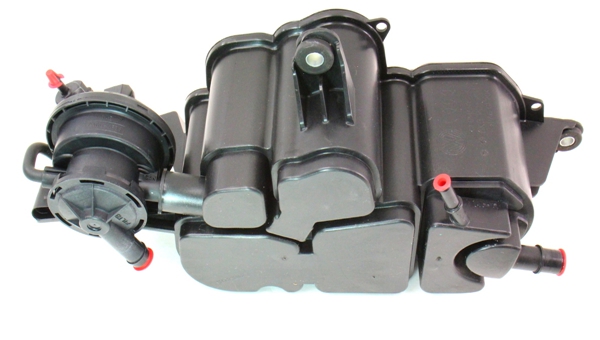

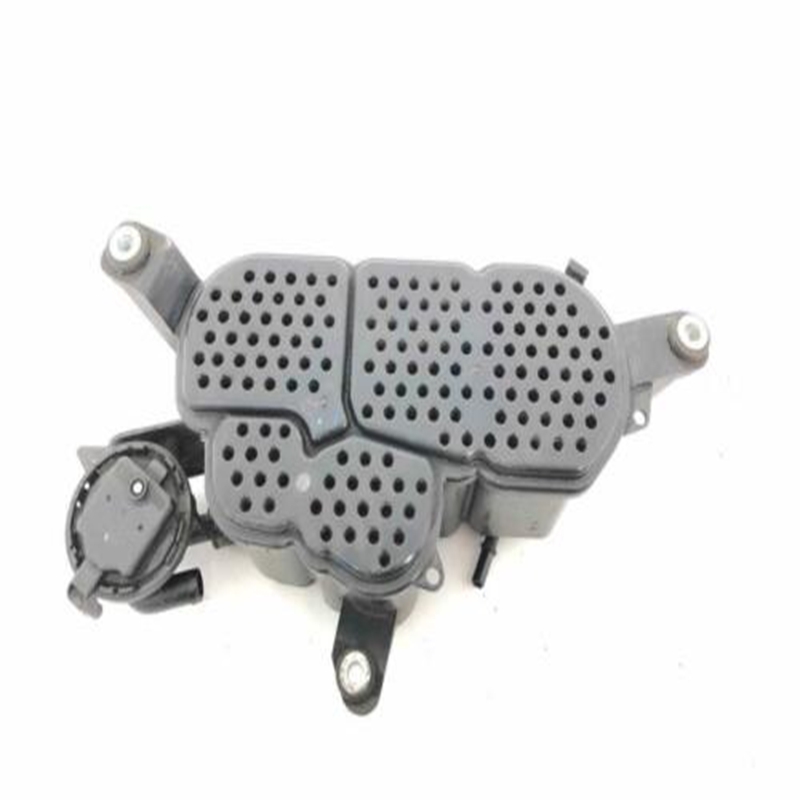

Car charcoal canister injection mold
Our factory OEM&ODM for automotive injection mould of car charcoal canister injection mold.
H13 steel material for core and cavity side
3 points vavle type YUDO hot runner
5 sliders,4 lifters for mold design structurer
1*1 cavity layout
Car charcoal canister injection mold
|
Product Name |
Car charcoal canister injection mold(AUDI) Automotive injection mould |
|
Cavity |
1*1 |
|
Runner |
YUDO hot runner with 3 points vavle type |
|
Slider |
5 |
|
Lifter |
4 |
|
Mould size & weight |
1050*750*780mm&3800KG |
|
Mould material |
Mould base material : A+B plate P20 Mould cavity material: H13 with heat treatment HRC48-52 Cycle time : 110s or so |
|
Mold shots |
1000K |
|
Product size |
454.5*231.7*163.2 |
|
Product material |
PA6+GF15 |
Welcome visit our factory, if you have further requirement for car charcoal canister injection mold and automotive injection mould
