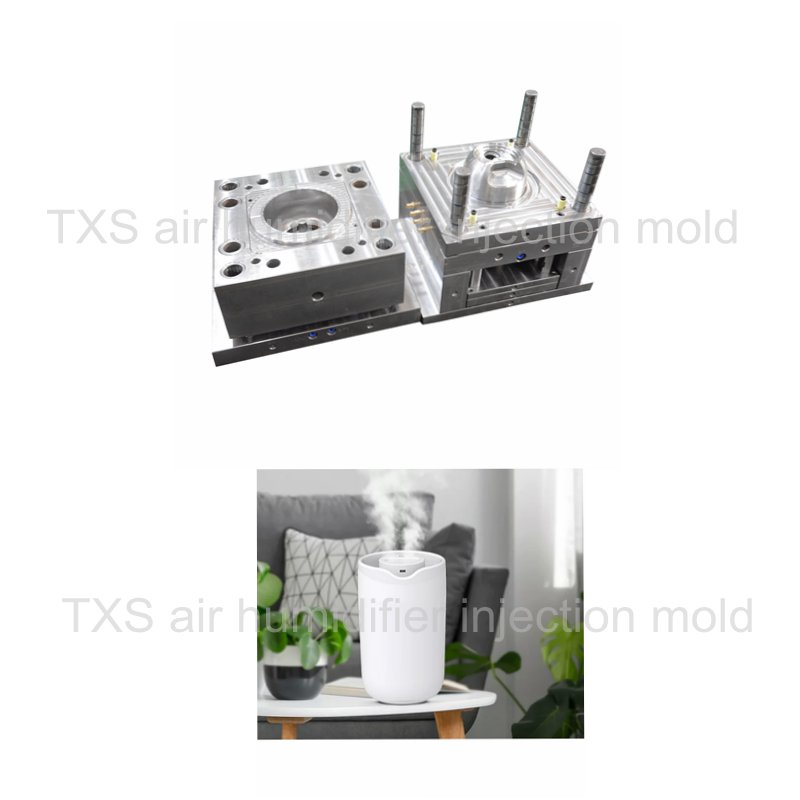

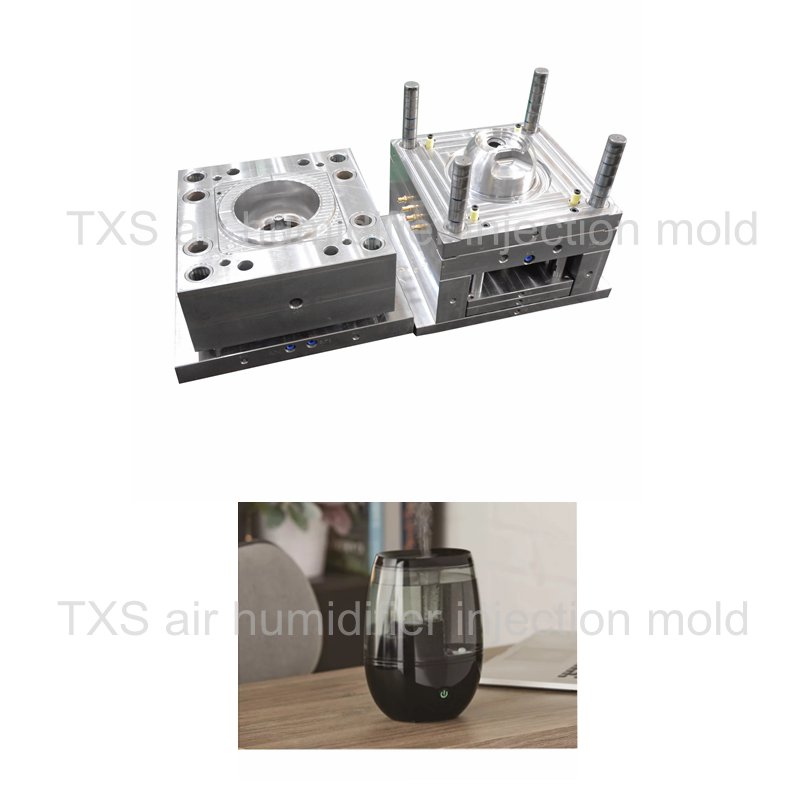

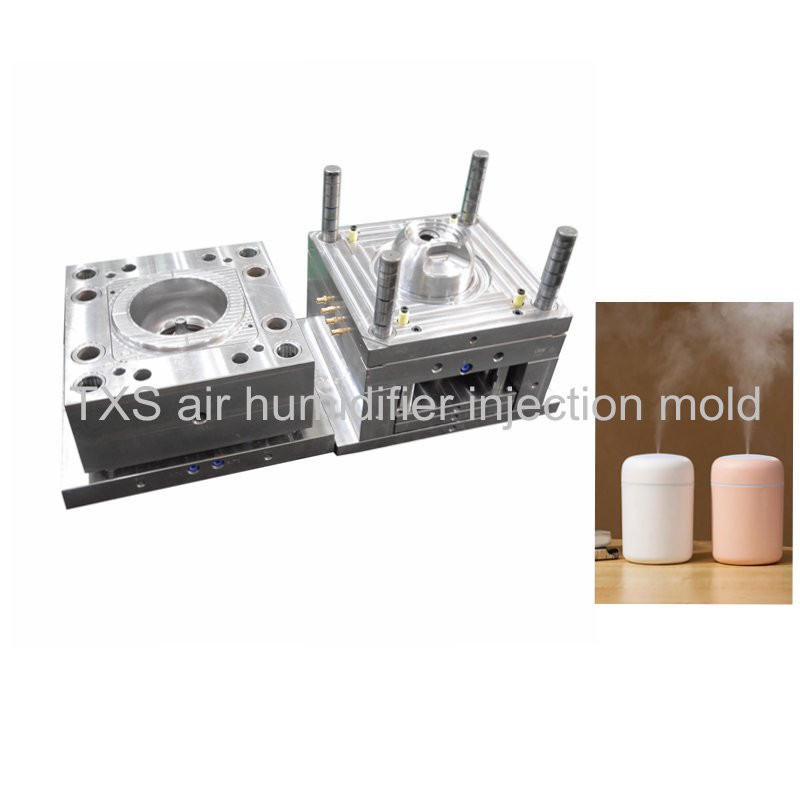

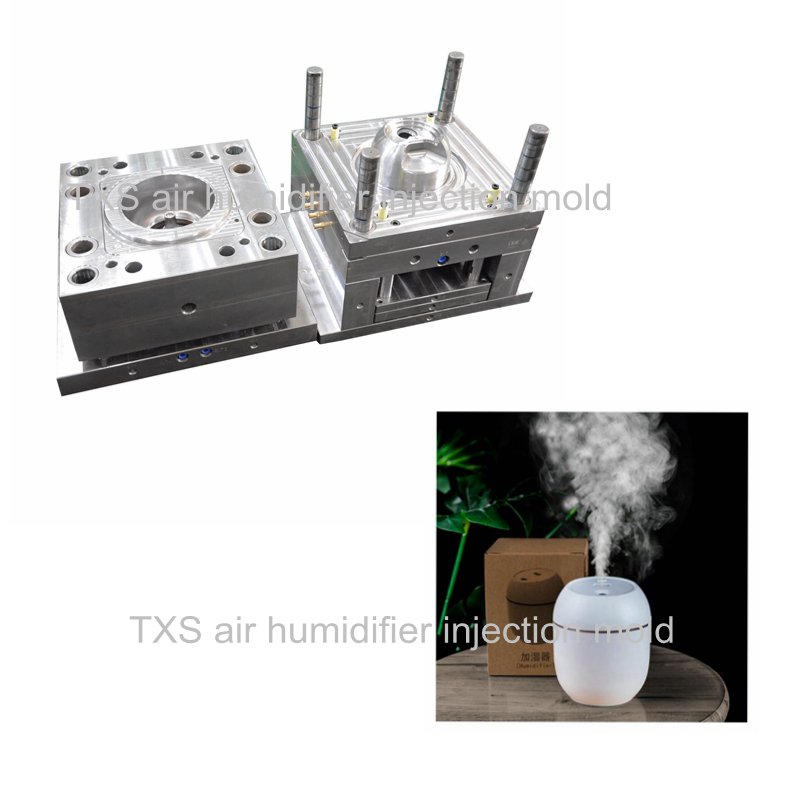

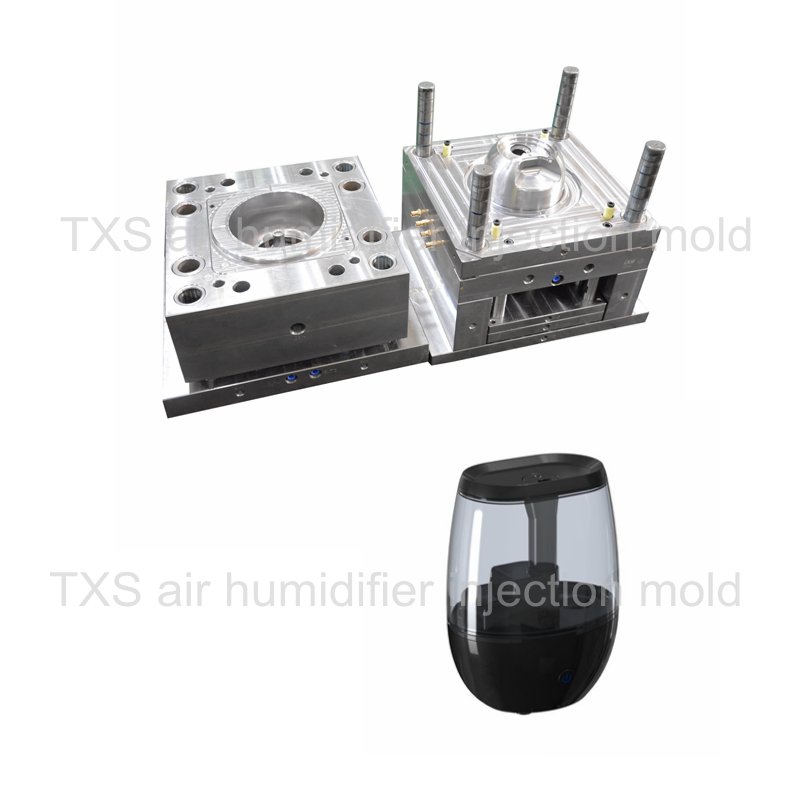

Home appliance air humidifier plastic enclosure injection mold
Product Tags :
Precision mold
Product Attributes :
Home appliance air humidifier plastic enclosure injection mold
1*1 cavity layout
S136 heat treatment
Guarantee 1 million shots
Product Description
Home appliance air humidifier plastic enclosure injection mold
Tianjin XinXiang specialized in air humidifier plastic enclosure injection mold.
Free for DFM report and mold flow analysis before mold design and making.
| Product Name |
Home appliance air humidifier plastic enclosure injection mold |
| Plastic Material | PP, PC, PS, PMMA for Transparent. |
| Steel of Cavity & Core | Depends on Product, we help customer to choose the suitable material. Commonly used material as below: Buderus: 1.2311, 1.2738, 1.2344, 1.2316, BPM-HH, SUS-420…etc. Finkl: P20, HiP-20, H13…etc. Hitach: NAK80, DAC, FDAC, SKD61…etc. Assab: 618, 718, STAVAX…etc. |
| Steel of Mold Base | Depends on Product, we help customer to choose the suitable material.Commonly used material is S50C. |
| No. of Cavity | Customized 1*1 |
| Hardness of Cavity & Core | Heat Treatment Steel: HRC 48~52± 1° |
| Core pulling or Ejection system | Depends on the Product. Commonly used : Motor, oil cylinder, stripping plate, angel pin, ejector pin…etc |
| Mould Spare Parts | Compatible to DME/HASCO Standard. |
| Cooling System | In Core: Baffle or By pass cooling In Cavity Plate: Chain drilling type cooling |
| Surface Finish | Depends on the product. Commonly used: Texture Hatching, EDM Hatching, Polishing, Diamond Polishing…etc. |
| Mold Lifetime | Depends on the steel hardness and the plastic material. Commonly used: 300,000 ~ 500,000 shots or 1 year under normal use procedure for Pre-Hardness material. 1,000,000 shots or 1 year under normal use procedure for Heat Treatment material. |
| Runner | 1. Cold Runner. 2. Hot Runner. |
| Delivery time | For First trial: 45 ~ 80 days after mold drawings approved. |
| Packing | Standard Wooden Box |

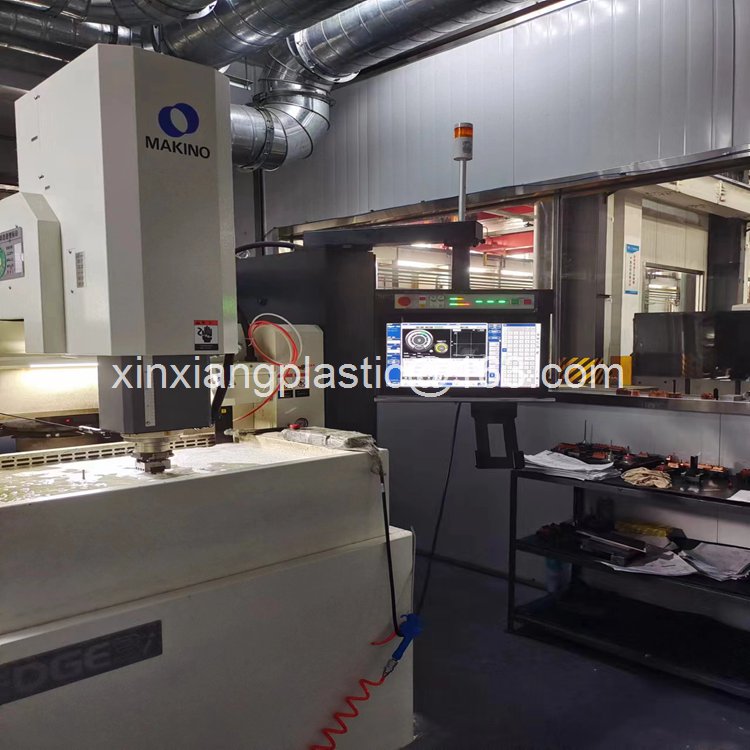

| Machine Center | CNC milling machine, CNC Lathing machine, EDM, WEDM,NC milling & lathing machine and so on. |
| Production | We can also provide Pilot Run production and molding production. |
Welcome visit our injection mold manufacturer factory.If you have further requirement for air humidifier plastic enclosure injection mold
