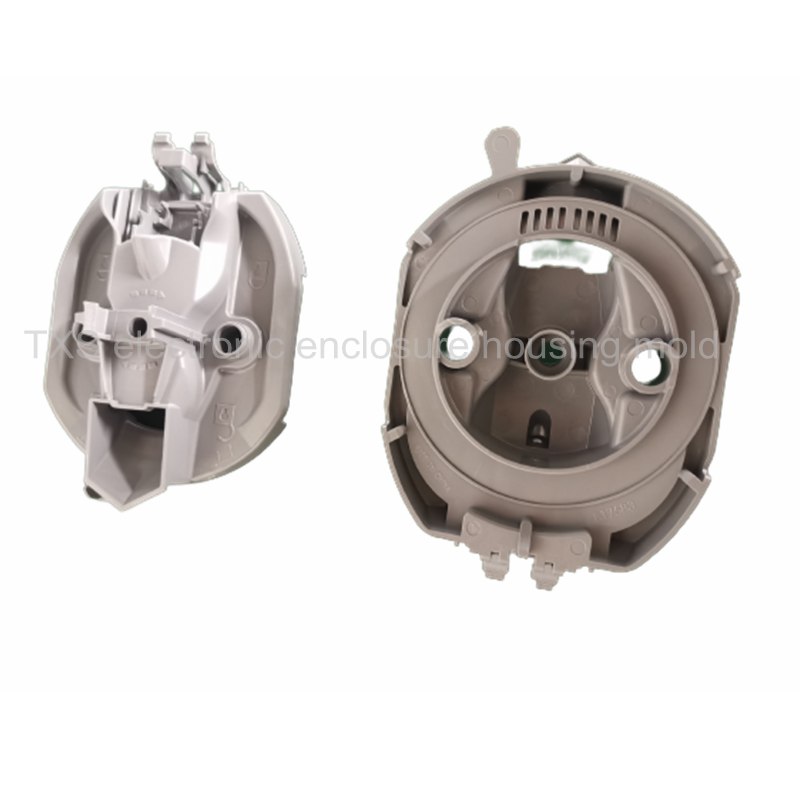

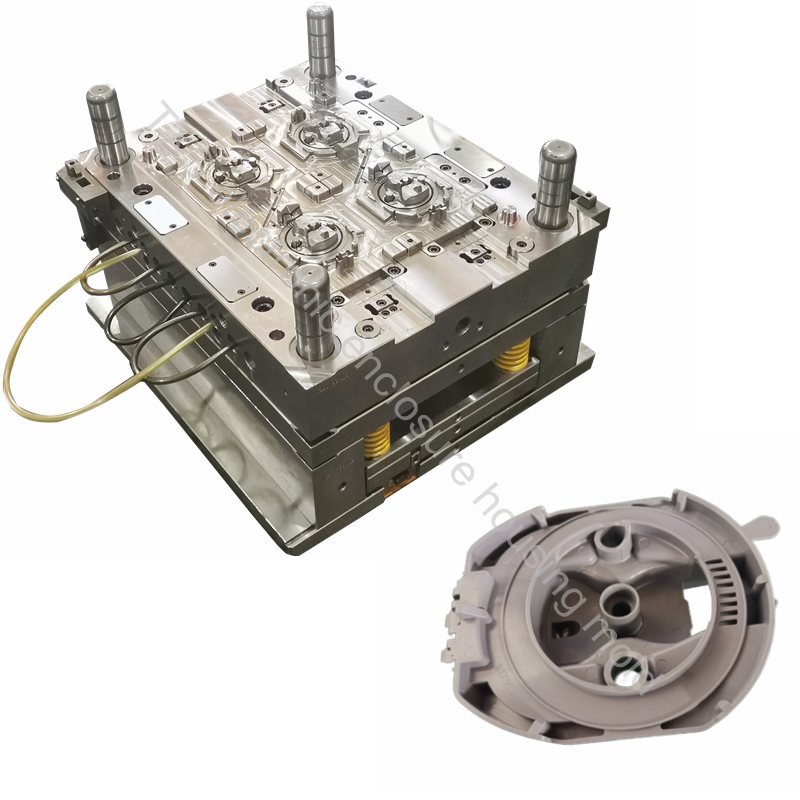

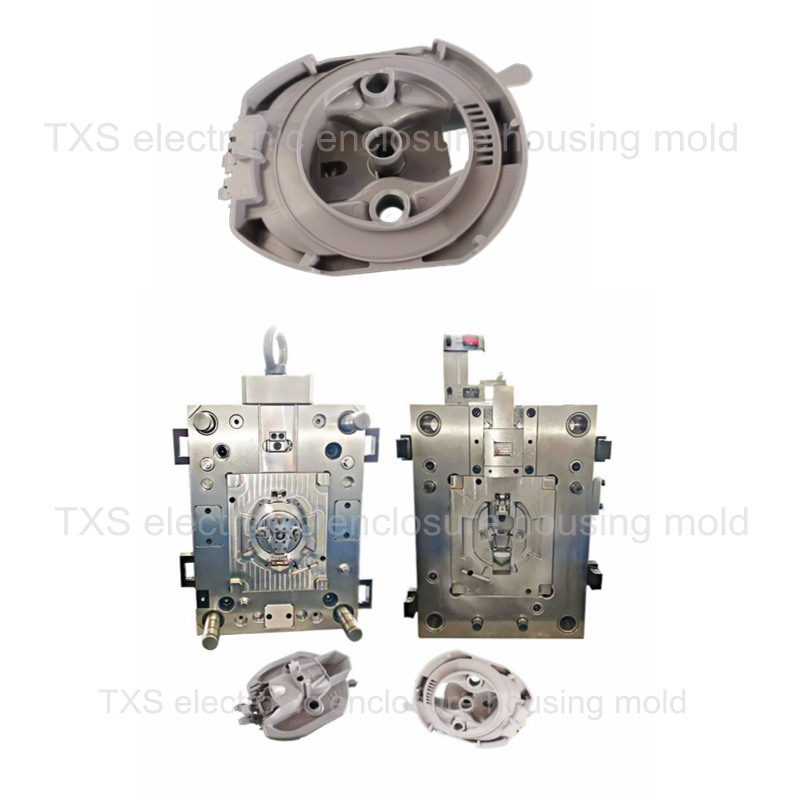

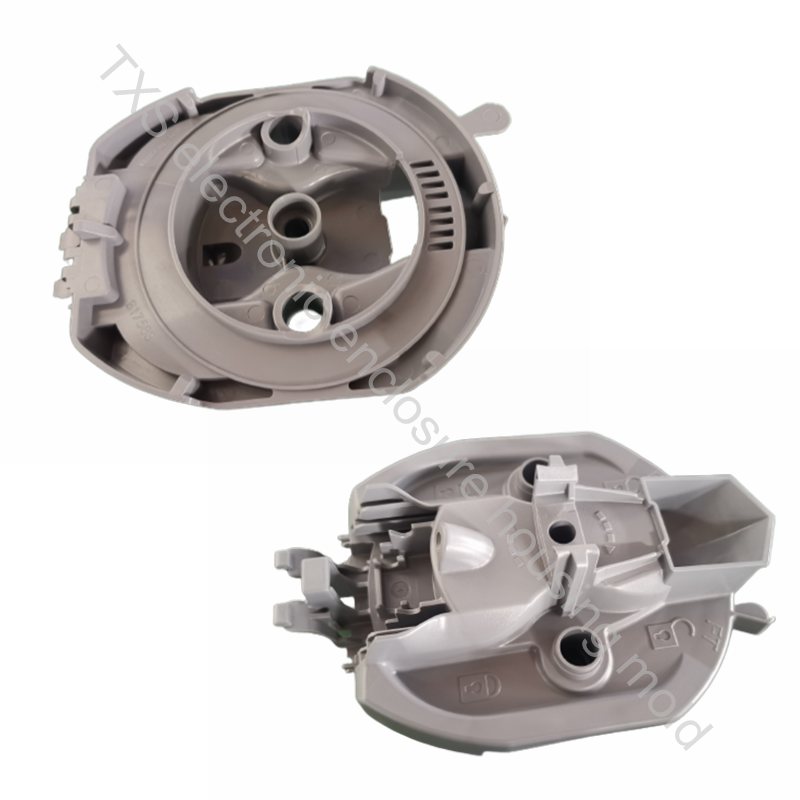

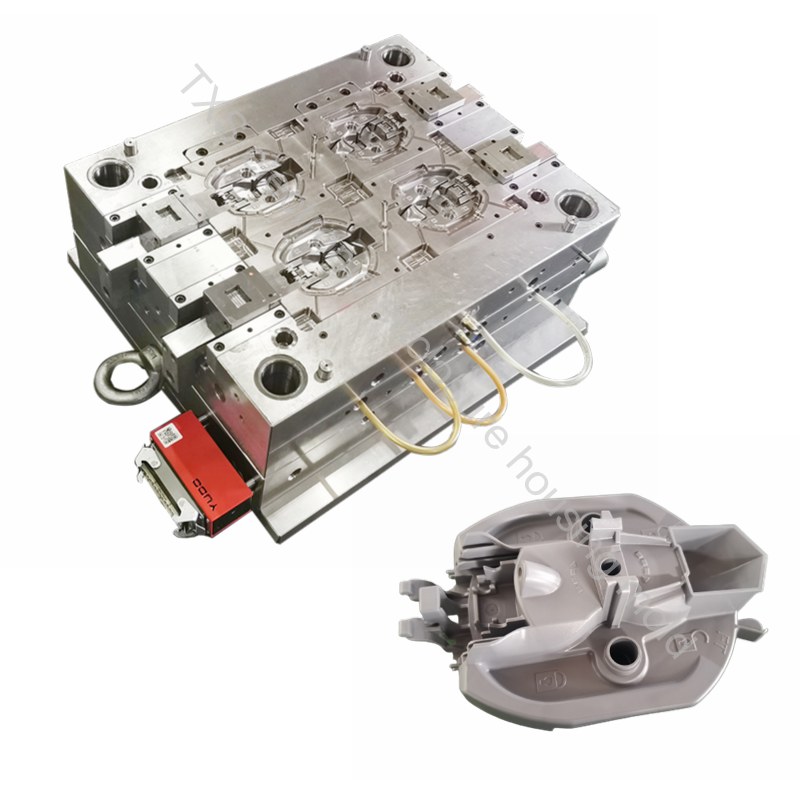

Plastic electronic enclosure housing injection mold
Plastic electronic enclosure housing injection mold
Enclosure cove for painting device
1*1 or 1*4 cavity design
YUDO hot runner 1&4 points vavle type
Molding by 280T injection machine
Plastic electronic enclosure housing injection mold
TXX foucs on plastic electronic enclosure housing injection mold design and manufacture,also supply injection molding services.
Enclosure housing cover mold design&machining,injection molding include insertmolding production,packing......
|
Product Name |
Plastic electronic enclosure housing injection mold |
|
Cavity |
1*1&1*4 |
|
Runner |
YUDO Hot runner system 1&4 points vavle type |
|
Mold material |
Mold base material : S50C Mold cavity material: 8407 Cycle time :45 seconds |
|
Slider |
1 |
|
Injection machine |
280T |
|
Product size |
156*110*50mm |
|
Product material |
POM |
Welcome visit our factory, if you have further requirement for plastic electronic enclosure housing injection mold
