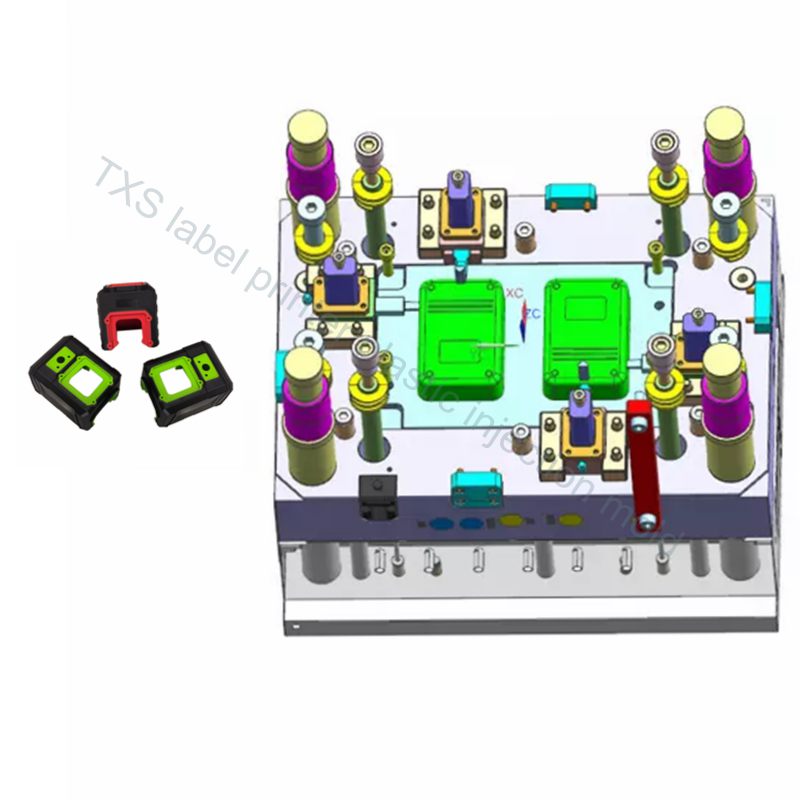

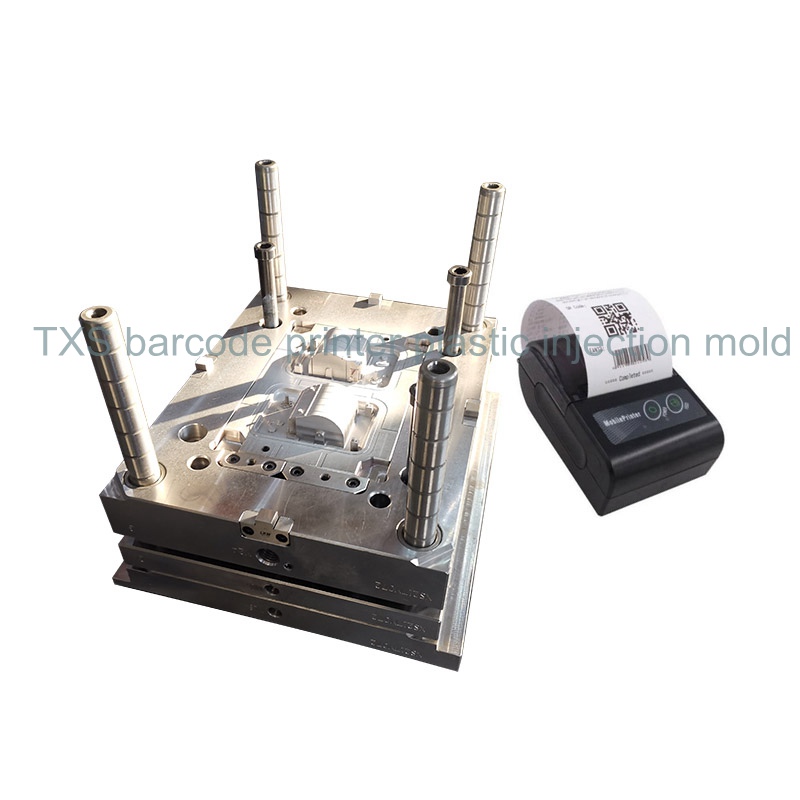

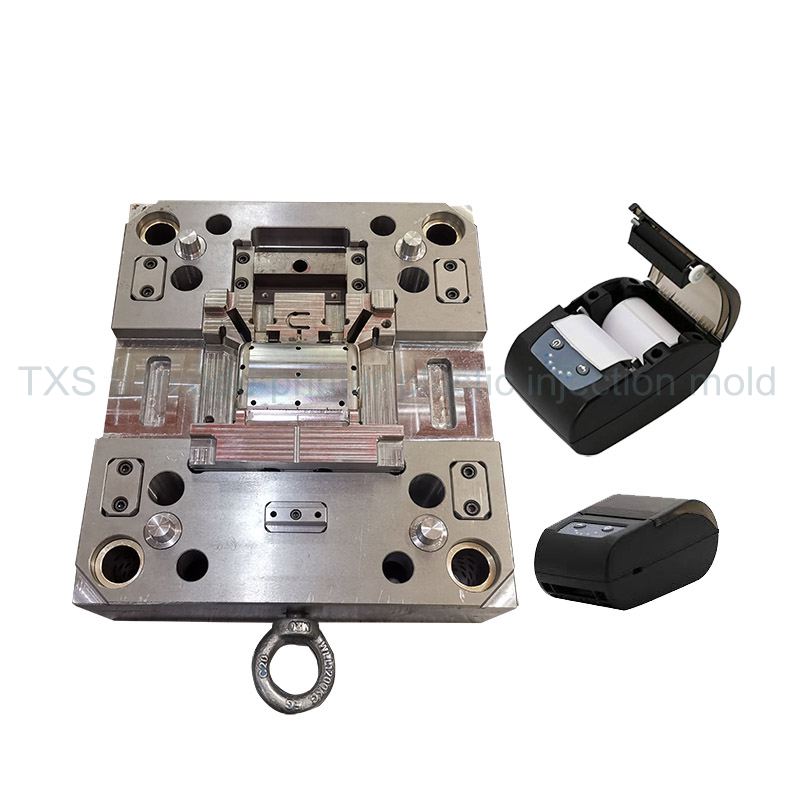

Precision barcode printer thermal label plastic injection mold and molding
1+1 cavity layout
3 plates injection mold type
Mold cavity&core material S136 HARDEN
Many core ribs design special technical for vent
TXX design and manufacturer precision barcode printer thermal label plastic injection mold and molding production.
Adopt 3 plates mold design,polishing treatment,vent technical.....
Product Name |
Barcode printer thermal label plastic injection mold |
Cavity |
1+1 |
Runner |
Cold runner system,3 plates mold type |
Sliders |
4 tunnel sliders |
Mold size & weight |
410*460*450mm&500KG |
Mold material |
Mold base material : A+B plate P20 Mold cavity material: S136 heat treatment HRC48-52 |
Cycle time |
30 seconds |
Product material |
ABS |
Welcome visit our factory, if you have further requirement for barcode printer plastic injection mold
