PRODUCT

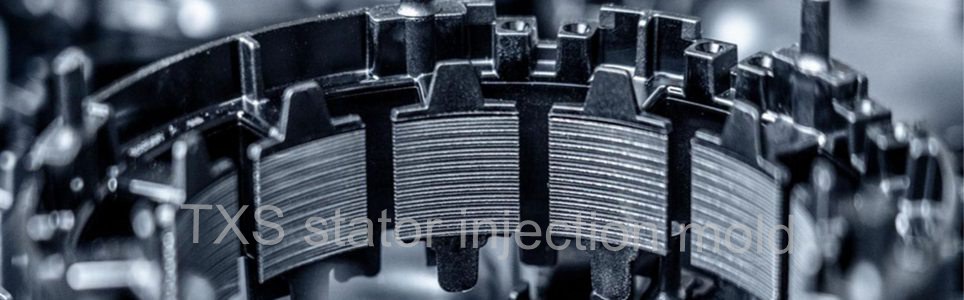

Precision stator plastic injection mold-molding components

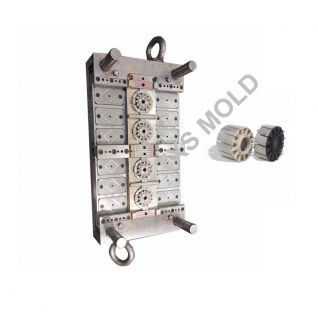

Precision rotor and stator plastic injection mold with precision moulded components by insertmolding processing from Tianjin TXS mold design and making company.
Specialized in car stator plastic parts injection mold manufacturer.

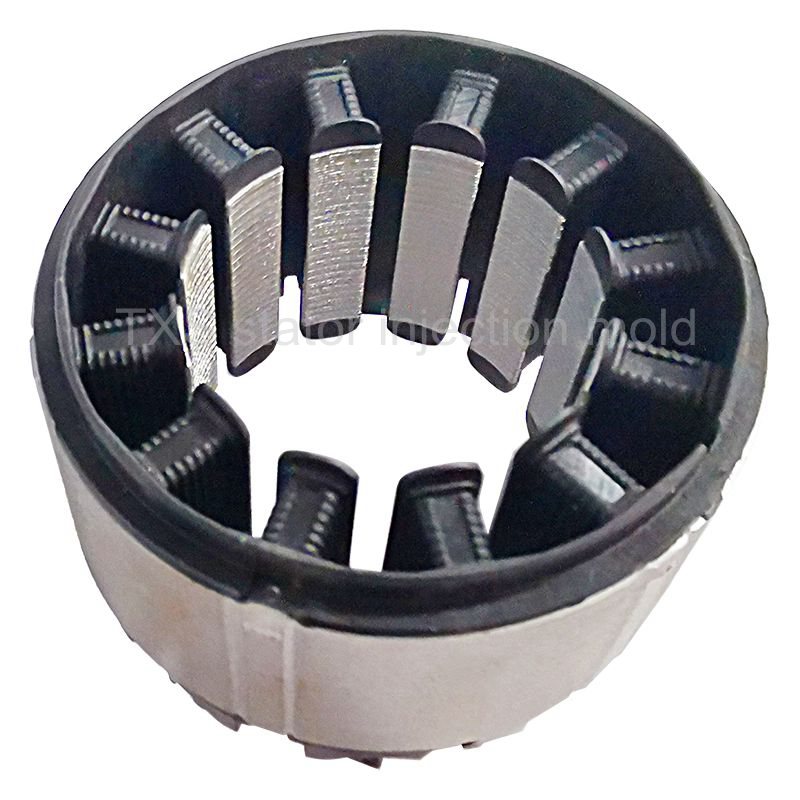

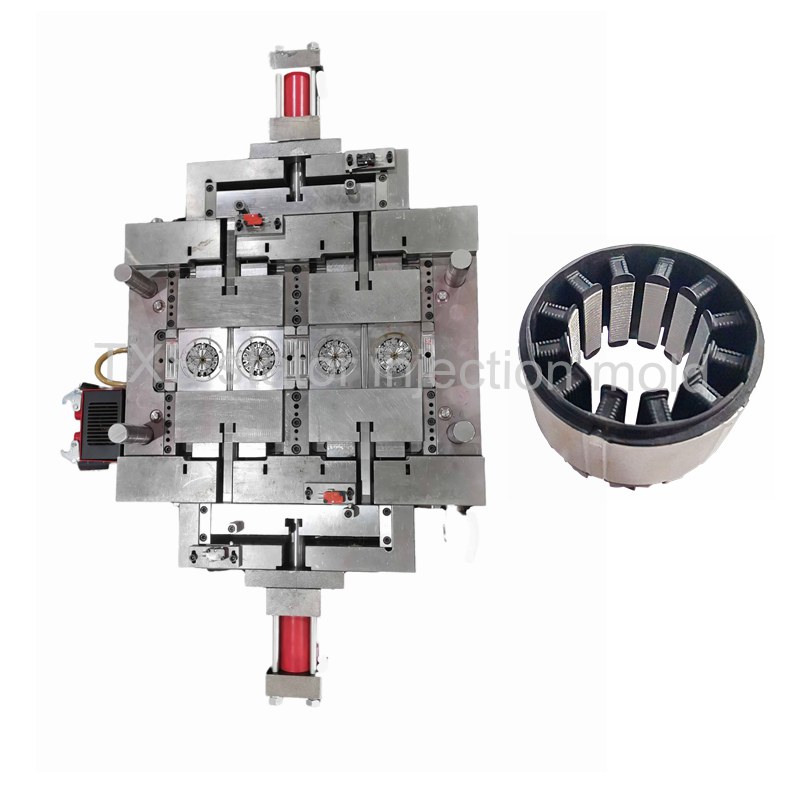

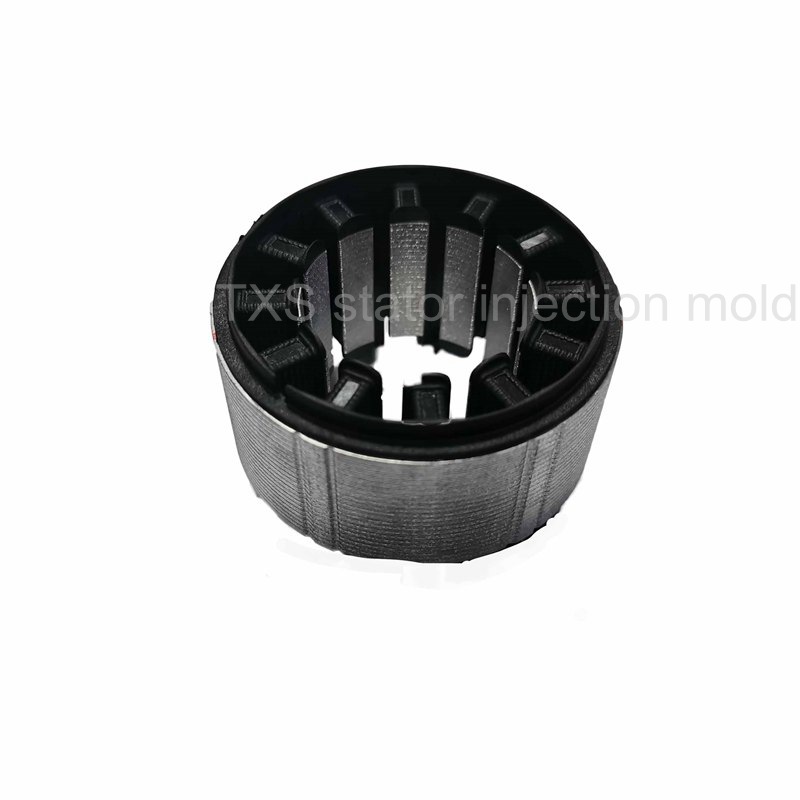

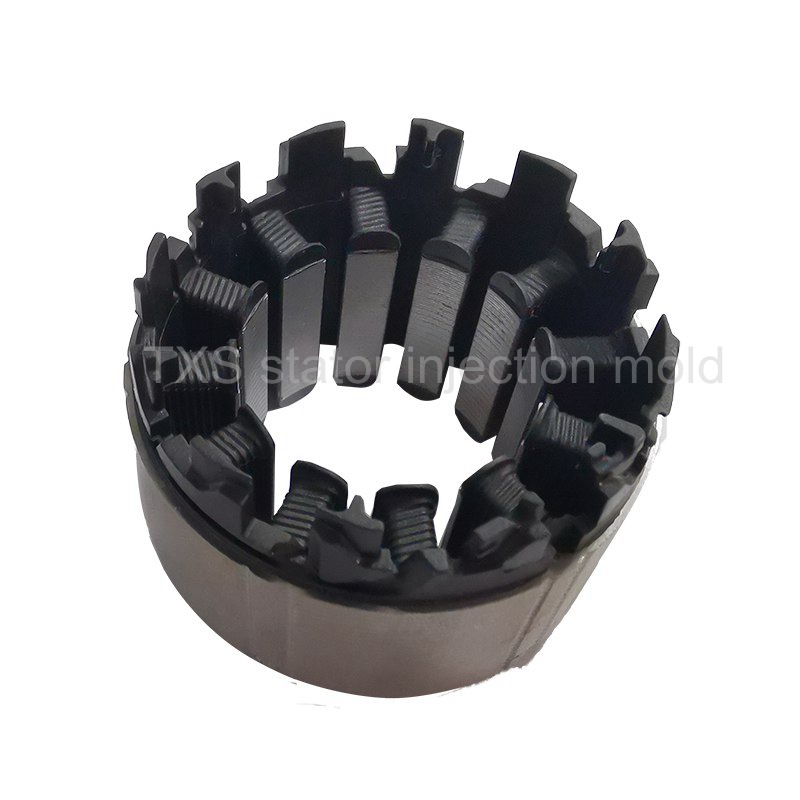

Precision stator plastic injection mold-molding components
Tianjin Xuansheng specialized in car window lift motor(rotor&stator) mold design and manufacturer.
Supply precision moulded components by insertmolding process.
Please check the following list for the motor mold details:
|
Product Name |
Car stator plastic injection mold(AUDI) |
|
Cavity |
4 |
|
Runner |
Hot runner system |
|
Mold size & weight |
500*550*450mm&898KG |
|
Mold material |
Mold base material : A+B plate P20 Mold cavity material: 1.2344 heat treatment HRC48-52 Cycle time :50s or so |
|
Product size |
D55*40 |
|
Product material |
PBT-GF30 |

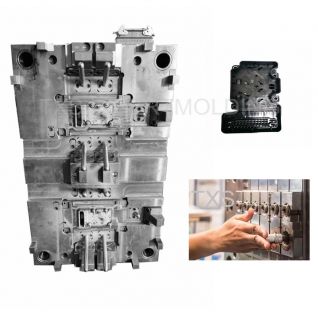

The INSERTMOLDING technology is applied to the precision plastic molding of the motor mold.
Precision stator plastic injection mold can ensure the motor quality and performance.
Welcome visit our factory, if you have further requirement for
Precision stator plastic injection mold of motor parts
